Dream Routerを買った。
Dream Routerを買ったが、接続した端末にIPv6のアドレスが振られなかったので調べたメモ。
結論
Dream Routerはひかり電話のホームゲートウェイに接続すればDHCPv6-PDによってIPv6のアドレスがもらえる。 他の人は使えているようだが、うちでは使えなかった。
結論から言うと、ホームゲートウェイの応答がDream RouterのFirewallによってブロックされている。 Dream RouterでブロックしないようにすればOK。
調査

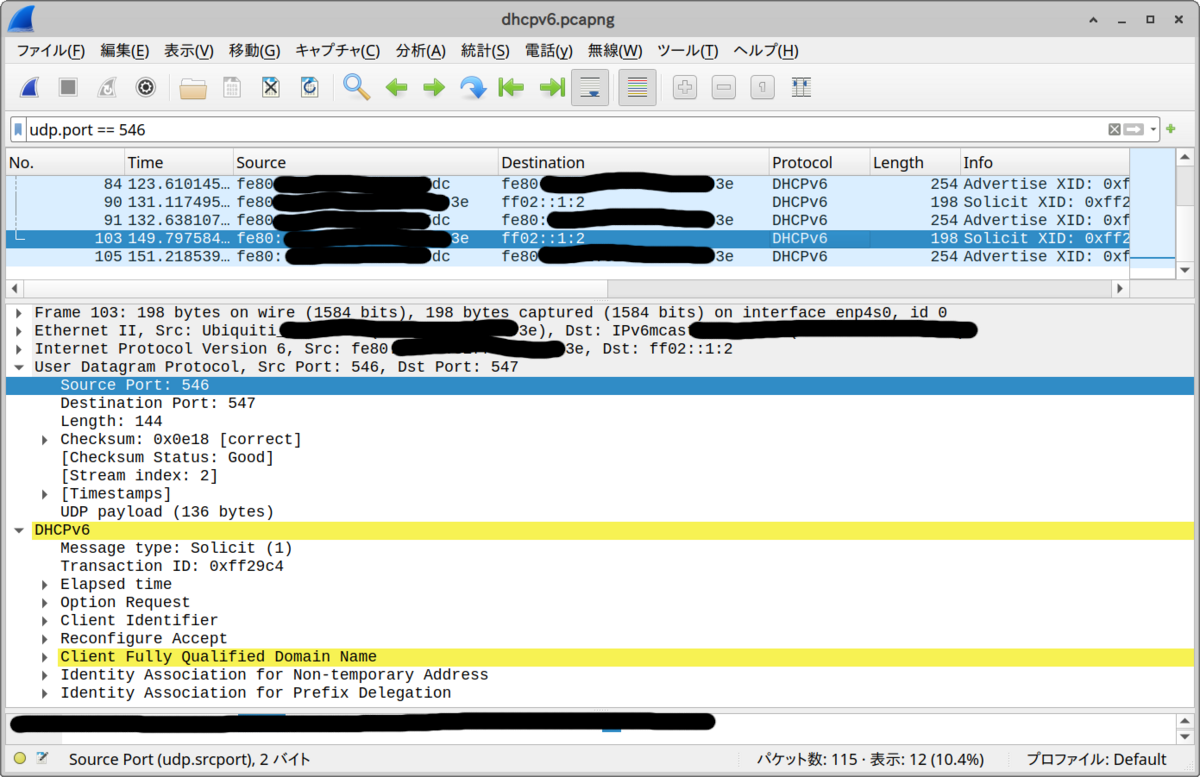

WiresharkでDream Routerホームゲートウェイ間のパケットを見ると、Dream RouterがSolicitを送った後に、Advertiseが戻ってきているのがわかる。 本来はこの後に、Dream RouterからRequestを送り、Replyが戻ってくる。 しかし、Dream RouterからのRequestが送られていなかった。Rapid Commitを使うとRequest、Replyを省略できるがRapid Commitは未設定だった。
ポート番号を確認すると、Solicitは、546から547に送る。

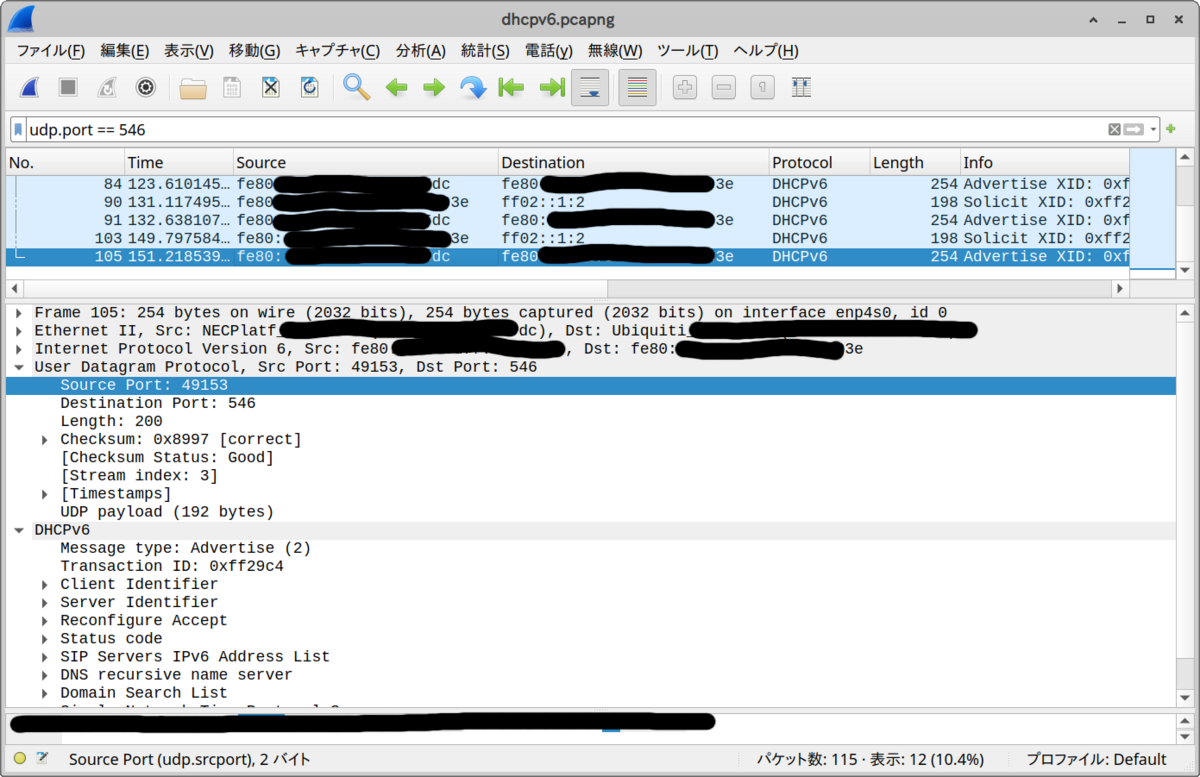

Advertiseは、49153から546に送る。
Dream Routerはサポート用のファイルをダウンロードできる。この中にはファイアウォール用の設定も含まれている。
IPv6用のルールである、ip6tables-save
を見ると、Advertiseは547から546しか許可してないっぽいルールを発見。
-A UBIOS_WAN_LOCAL_USER -p udp -m udp --sport 547 --dport 546 -m comment --comment 00000000008589937599 -j RETURN
調べてみると、こんな記事があった。うちのホームゲートウェイもPR-400NEだった。 www.labohyt.net
Dream Routerの設定
こんな感じでホームゲートウェイからのAdvertiseを許可する設定を追加すればOK。
- Typeは、Internet v6 Local
- Rule Appliedは、Before Predefined Rules
- SourceのPort GroupはAny(ポート番号は5桁なので固定ではなさげ)
- SourceのMAC Addressは一応ホームゲートウェイのMACアドレスを指定。
仕上げ
DHCPv6でprefixをホームゲートウェイからもらうように、InternetのIPv6 Connection
をDHCPv6
、Prefix Delegation Size
を60
にする。
Dream Router配下の端末にはRAで配布するように、NetworksのIPv6 Interface Type
をPrefix Delegation
、Router Advertisement(RA)
をEnable
、RA Priority
をHigh
、残りはデフォルト(必要に応じてカスタマイズ)にする。
これでIPv6使えた!
NanoPi R2SでFreeBSDを動かす
やること
Amazon買ったNanoPi R2Sで、FreeBSDを動かす。 FreeBSDはFreeBSD 13.0-RC5。
FreeBSDのダウンロード
SDへの書き込みは時間がかかるので、先にやっておく。ROCK64用のイメージをダウンロードして、いつものように書き込み。 ROCK64なのは、CPUが同じだから。
unxz -c FreeBSD-13.0-RC5-arm64-aarch64-ROCK64.img.xz | sudo dd of=/dev/da0 bs=1m status=progress
書き込んでいる間にu-boot
最新のu-boot-masterの2021.04を使いたかったが、portsnapでは落ちで来なかったのでGitHubから持ってくる。
# git cloneは時間がかかりそうだからZIPでダウンロード。 curl -L -O https://github.com/freebsd/freebsd-ports/archive/refs/heads/main.zip unzip main.zip mv freebsd-ports-main /usr/ports
NanoPi R2S用のu-bootのportsはなかったので、自分で作った。これもROCK64用をカスタマイズして作った。
インストールはmake install
するだけ。
cd /usr/ports/sysutils git clone https://github.com/rixwwd/u-boot-nanopi-r2s.git cd u-boot-nanopi-r2s make install
u-bootの書き込み
u-bootのビルド&インストールとFreeBSD用のイメージの書き込みが終わったら、u-bootをSDに書き込む。
dd if=/usr/local/share/u-boot/u-boot-nanopi-r2s/idbloader.img of=/dev/da0 seek=64 bs=512 conv=sync dd if=/usr/local/share/u-boot/u-boot-nanopi-r2s/u-boot.itb of=/dev/da0 seek=16384 bs=512 conv=sync
起動!
SDカードを差し込んで、しばらく待つと、SSHで接続できるようになる。
ユーザー、パスワードはfreebsd
でログインできる。
freebsd@generic:~ % dmesg ---<<BOOT>>--- Copyright (c) 1992-2021 The FreeBSD Project. Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994 The Regents of the University of California. All rights reserved. FreeBSD is a registered trademark of The FreeBSD Foundation. FreeBSD 13.0-RC5 #0 releng/13.0-n244727-f8a134d0ef1: Fri Apr 2 06:18:30 UTC 2021 root@releng1.nyi.freebsd.org:/usr/obj/usr/src/arm64.aarch64/sys/GENERIC arm64 FreeBSD clang version 11.0.1 (git@github.com:llvm/llvm-project.git llvmorg-11.0.1-0-g43ff75f2c3fe) VT: init without driver. module firmware already present! real memory = 1071427584 (1021 MB) avail memory = 1023131648 (975 MB) Starting CPU 1 (1) Starting CPU 2 (2) Starting CPU 3 (3) FreeBSD/SMP: Multiprocessor System Detected: 4 CPUs arc4random: WARNING: initial seeding bypassed the cryptographic random device because it was not yet seeded and the knob 'bypass_before_seeding' was enabled. random: entropy device external interface MAP 3cf1f000 mode 2 pages 1 MAP 3cf23000 mode 2 pages 3 MAP 3cf27000 mode 2 pages 4 MAP 3ff40000 mode 2 pages 16 WARNING: Device "openfirm" is Giant locked and may be deleted before FreeBSD 14.0. WARNING: Device "kbd" is Giant locked and may be deleted before FreeBSD 14.0. kbd0 at kbdmux0 ofwbus0: <Open Firmware Device Tree> simplebus0: <Flattened device tree simple bus> on ofwbus0 clk_fixed0: <Fixed clock> on ofwbus0 rk_grf0: <RockChip General Register Files> mem 0xff100000-0xff100fff on ofwbus0 rk3328_cru0: <Rockchip RK3328 Clock and Reset Unit> mem 0xff440000-0xff440fff on ofwbus0 Cannot set frequency for clk: aclk_bus_pre, error: 34 rk3328_cru0: Failed to set aclk_bus_pre to a frequency of 15000000 Cannot set frequency for clk: aclk_peri_pre, error: 34 rk3328_cru0: Failed to set aclk_peri_pre to a frequency of 15000000 clk_fixed1: <Fixed clock> on ofwbus0 regfix0: <Fixed Regulator> on ofwbus0 regfix1: <Fixed Regulator> on ofwbus0 simple_mfd0: <Simple MFD (Multi-Functions Device)> mem 0xff450000-0xff45ffff on ofwbus0 psci0: <ARM Power State Co-ordination Interface Driver> on ofwbus0 gic0: <ARM Generic Interrupt Controller> mem 0xff811000-0xff811fff,0xff812000-0xff813fff,0xff814000-0xff815fff,0xff816000-0xff817fff irq 49 on ofwbus0 gic0: pn 0x2, arch 0x2, rev 0x1, implementer 0x43b irqs 160 rk_pinctrl0: <RockChip Pinctrl controller> on ofwbus0 gpio0: <RockChip GPIO Bank controller> mem 0xff210000-0xff2100ff irq 53 on rk_pinctrl0 gpiobus0: <OFW GPIO bus> on gpio0 gpio1: <RockChip GPIO Bank controller> mem 0xff220000-0xff2200ff irq 54 on rk_pinctrl0 gpiobus1: <OFW GPIO bus> on gpio1 gpio2: <RockChip GPIO Bank controller> mem 0xff230000-0xff2300ff irq 55 on rk_pinctrl0 gpiobus2: <OFW GPIO bus> on gpio2 gpio3: <RockChip GPIO Bank controller> mem 0xff240000-0xff2400ff irq 56 on rk_pinctrl0 gpiobus3: <OFW GPIO bus> on gpio3 rk_i2c0: <RockChip I2C> mem 0xff160000-0xff160fff irq 16 on ofwbus0 iicbus0: <OFW I2C bus> on rk_i2c0 rk805_pmu0: <RockChip RK805 PMIC> at addr 0x30 irq 57 on iicbus0 gpioregulator0: <GPIO controlled regulator> on ofwbus0 generic_timer0: <ARMv8 Generic Timer> irq 4,5,6,7 on ofwbus0 Timecounter "ARM MPCore Timecounter" frequency 24000000 Hz quality 1000 Event timer "ARM MPCore Eventtimer" frequency 24000000 Hz quality 1000 rk_tsadc0: <RockChip temperature sensors> mem 0xff250000-0xff2500ff irq 22 on ofwbus0 cpulist0: <Open Firmware CPU Group> on ofwbus0 cpu0: <Open Firmware CPU> on cpulist0 cpufreq_dt0: <Generic cpufreq driver> on cpu0 cpu1: <Open Firmware CPU> on cpulist0 cpufreq_dt1: <Generic cpufreq driver> on cpu1 cpu2: <Open Firmware CPU> on cpulist0 cpufreq_dt2: <Generic cpufreq driver> on cpu2 cpu3: <Open Firmware CPU> on cpulist0 cpufreq_dt3: <Generic cpufreq driver> on cpu3 pmu0: <Performance Monitoring Unit> irq 0,1,2,3 on ofwbus0 uart0: <16750 or compatible> mem 0xff130000-0xff1300ff irq 14 on ofwbus0 uart0: console (1500000,n,8,1) iic0: <I2C generic I/O> on iicbus0 rockchip_dwmmc0: <Synopsys DesignWare Mobile Storage Host Controller (RockChip)> mem 0xff500000-0xff503fff irq 41 on ofwbus0 rockchip_dwmmc0: Hardware version ID is 270a mmc0: <MMC/SD bus> on rockchip_dwmmc0 dwc0: <Rockchip Gigabit Ethernet Controller> mem 0xff540000-0xff54ffff irq 44 on ofwbus0 miibus0: <MII bus> on dwc0 rgephy0: <RTL8169S/8110S/8211 1000BASE-T media interface> PHY 0 on miibus0 rgephy0: none, 10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto rgephy1: <RTL8169S/8110S/8211 1000BASE-T media interface> PHY 1 on miibus0 rgephy1: none, 10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto dwc0: Ethernet address: xx:xx:xx:xx:xx:xx ehci0: <Generic EHCI Controller> mem 0xff5c0000-0xff5cffff irq 46 on ofwbus0 usbus0: EHCI version 1.0 usbus0 on ehci0 ohci0: <Generic OHCI Controller> mem 0xff5d0000-0xff5dffff irq 47 on ofwbus0 usbus1 on ohci0 dwcotg0: <DWC OTG 2.0 integrated USB controller> mem 0xff580000-0xff5bffff irq 48 on ofwbus0 usbus3 on dwcotg0 gpioc0: <GPIO controller> on gpio0 gpioc1: <GPIO controller> on gpio1 gpioc2: <GPIO controller> on gpio2 gpioc3: <GPIO controller> on gpio3 gpioled0: <GPIO LEDs> on ofwbus0 cryptosoft0: <software crypto> armv8crypto0: <AES-CBC,AES-XTS,AES-GCM> Timecounters tick every 1.000 msec usbus0: 480Mbps High Speed USB v2.0 usbus1: 12Mbps Full Speed USB v1.0 usbus3: 480Mbps High Speed USB v2.0 ugen3.1: <DWCOTG OTG Root HUB> at usbus3 uhub0 on usbus3 uhub0: <DWCOTG OTG Root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus3 ugen1.1: <Generic OHCI root HUB> at usbus1 uhub1 on usbus1 uhub1: <Generic OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus1 ugen0.1: <Generic EHCI root HUB> at usbus0 uhub2 on usbus0 uhub2: <Generic EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus0 mmcsd0: 16GB <SDHC SD16G 3.0 SN 7CD5F333 MFG 03/2020 by 39 PH> at mmc0 50.0MHz/4bit/1021-block Release APs...done CPU 0: ARM Cortex-A53 r0p4 affinity: 0 Cache Type = <64 byte D-cacheline,64 byte I-cacheline,VIPT ICache,64 byte ERG,64 byte CWG> Trying to mount root from ufs:/dev/ufs/rootfs [rw]... Instruction Set Attributes 0 = <CRC32,SHA2,SHA1,AES+PMULL> Instruction Set Attributes 1 = <> Processor Features 0 = <AdvSIMD,FP,EL3 32,EL2 32,EL1 32,EL0 32> Processor Features 1 = <> Memory Model Features 0 = <TGran4,TGran64,SNSMem,BigEnd,16bit ASID,1TB PA> Memory Model Features 1 = <8bit VMID> Memory Model Features 2 = <32bit CCIDX,48bit VA> Debug Features 0 = <2 CTX BKPTs,4 Watchpoints,6 Breakpoints,PMUv3,Debugv8> Debug Features 1 = <> Auxiliary Features 0 = <> Auxiliary Features 1 = <> CPU 1: ARM Cortex-A53 r0p4 affinity: 1 CPU 2: ARM Cortex-A53 r0p4 affinity: 2 CPU 3: ARM Cortex-A53 r0p4 affinity: 3 GEOM: mmcsd0: the secondary GPT header is not in the last LBA. GEOM: diskid/DISK-7CD5F333: the secondary GPT header is not in the last LBA. Warning: no time-of-day clock registered, system time will not be set accurately Dual Console: Serial Primary, Video Secondary uhub1: 1 port with 1 removable, self powered uhub0: 1 port with 1 removable, self powered uhub2: 1 port with 1 removable, self powered random: randomdev_wait_until_seeded unblock wait random: unblocking device. dwwdt0: <Synopsys Designware watchdog timer> mem 0xff1a0000-0xff1a00ff irq 20 on ofwbus0 dwwdt0: cannot find clock device_attach: dwwdt0 attach returned 6 lo0: link state changed to UP dwc0: link state changed to DOWN dwc0: link state changed to UP
LANは2個ついているが、WANの方しか認識していない。
まだ対応してないようなので、いかにあるパッチを当ててみると動くかも。 https://bugs.freebsd.org/bugzilla/show_bug.cgi?id=253374
freebsd@generic:~ % ifconfig dwc0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500 options=8000b<RXCSUM,TXCSUM,VLAN_MTU,LINKSTATE> ether xx:xx:xx:xx:xx:xx inet 192.168.102.18 netmask 0xffffff00 broadcast 192.168.102.255 media: Ethernet autoselect (100baseTX <full-duplex>) status: active nd6 options=29<PERFORMNUD,IFDISABLED,AUTO_LINKLOCAL> lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384 options=680003<RXCSUM,TXCSUM,LINKSTATE,RXCSUM_IPV6,TXCSUM_IPV6> inet6 ::1 prefixlen 128 inet6 fe80::1%lo0 prefixlen 64 scopeid 0x2 inet 127.0.0.1 netmask 0xff000000 groups: lo nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
R2S用のDTSも最近コミットされているので、最新のソースならちゃんと動きそう。
COVID-19のワクチンの接種を予約するアプリを作る
やること
COVID-19のワクチンの接種を予約するアプリを作る
動機
アプリケーション開発の練習のため。 ワクチンの接種という身近な物をテーマにすることで仕組みを考えやすくする。 また、難易度的にちょうどいいと思った。
今週の成果
Githubにコミットして、Herokuにデプロイできるように設定した。
MAP-EでL2TP/IPSecが使えないからWireGuardでAWSを経由させる
やること
自宅はIPoEでMAP-Eな環境になっている。そのため、4500/udpとかESPは通過できない。 そのため、AWS(Lightsail)を構築させることで、制限のないグローバルIPアドレスを入手し、そこからIPSecを使用する。 その構築にあたり、FreeBSDでWireGuardなVPNを構築した記録。
仕組み
特定のアドレスへの通信は、WireGuardを使用して、Lightsailへ転送し、Lightsailから接続する。
IPSecのクライアントになるPC→WireGuardの入り口→WireGuardの出口(Lightsail)→IPSecの接続先
Lightsailは3.5ドル/月で、1TBまでデータ転送できるため、用途的には十分。
方法
FreeBSDにWeireGuardをインストールして、特定アドレスはそれを経由するようにしただけ。
AWS側
LightsailでFreeBSDなインスタンスを作る。もちろん一番安い3.5ドルのプランで。
bsdconfig timezone
WireGuard
WireGuardはpkgでインストール。
pkg install wireguard
接続時の認証に使用する鍵をつくる。
# privateはAWSに設定、publicは自宅に設定 wg genkey | tee aws-private.txt | wg pubkey > aws-public.txt # privateは自宅に設定、publicはAWSに設定 wg genkey | tee local-private.txt | wg pubkey > local-public.txt
生成した鍵と、IPアドレスを書いた設定ファイルを作る。 10.01.0/2はVPNのネットワークアドレス。192.168.1.0/24は自宅のネットワークアドレス。 ポートの5555は、自分で使えるポートにする。MAP-Eは使えるポートに制限がある。
cat << 'EOF' > /usr/local/etc/wireguard/wg0.conf [Interface] Address = 10.0.1.1/32 ListenPort = 5555 PrivateKey = WKEaYCv+VOmSY/m/n82+IXNIapij8c8KqMW4e8cPKXE= [Peer] PublicKey = VSjhCn9WTEJWjSQW7tWmzKB0G/RE/z5t2AUaa58RrQU= AllowedIPs = 10.0.1.2/32, 192.168.1.0/24 'EOF'
pf
pfでNATする。
cat << 'EOF' > /etc/pf.conf ext_if=xn0 wg_if=wg0 home=172.16.0.1 home_net="192.168.1.0/24" wireguard_port=5555 set block-policy drop set skip on lo0 nat on $ext_if inet proto udp from $home_net port 500 to any -> $ext_if port 500 nat on $ext_if inet proto udp from $home_net port 4500 to any -> $ext_if port 4500 nat on $ext_if inet from $home_net to any -> $ext_if block in quick proto udp from ! $home to self port $wireguard_port pass all 'EOF'
インスタンスは使い捨てなので、rc.confには書かない。(書いてもいいけど)
kldload pf service pf onestart
パケットを転送する設定も忘れずに。
sysctl net.inet.ip.forwarding=1
起動する。
wg-quick up wg0
自宅側
AWSと同様に設定する。(インストール、ルーティングなどは面倒なので省略。) 172.17.0.1はIPSecの接続先のつもり。
WireGuardの設定はこんな感じで。
cat << 'EOF' > /usr/local/etc/wireguard/wg0.conf [Interface] Address=10.0.1.2/32 PrivateKey=+M2zyuI9IAnG6QxVMAg0nEf69rs3FeOTUsmQZVSKgFA= [Peer] Endpoint=AWSのアドレス:5555 PublicKey= U/OONLU/6LoDIo5j1hkKX2WH3gdh8KbhxlFRL/E6BUI= AllowedIPs=10.0.1.1/32, 172.17.0.1 PersistentKeepalive=25 'EOF'
起動する。
wg-quick up wg0
WireGuardの設定ファイルのAllowedIPsに書いてあるアドレス宛の場合は、wg0に流れるようになる。
まとめ
WireGuardは、接続早いし、設定は簡単。(証明書とか作らなくていいし。) AWSも3.5ドルでほぼ固定なので、外出先のWifiを使うときに、AWSまでWireGuardにして、通信の暗号化にもいいかもしれない。(スマートフォン用のアプリもあるし。)
k3s
Raspberry Piでkubernetesのクラスタを作っている人もいるくらいなので、そろそろkubernetesを初めてみようと思う。 まずは、簡単そうなk3sをやってみる。
準備
Ubuntu Server 18.04 LTSを普通にインストール。
k3sのインストール
ドキュメントに書いてある通りに、以下を実行する。
curl -sfL https://get.k3s.io | sh -
インストールは終わり。
構築する構成
シンプル?に Ingress(http/tcp) -> Service(http/tcp) -> Pod(http/tcp)の構成にしようと思う。
Pod
Podというかdeploymentを作る。そうするとイメージが Podとしてデプロイされる。 とりあえずnginxをデプロイ。
# 作ったら sudo kubectl create deployment webserver --image nginx # できたのを確認 sudo kubectl get pod NAME READY STATUS RESTARTS AGE webserver-d698d7bd6-rjht6 1/1 Running 0 14m
Service
Podを束ねる?サービスをPodから作る。
# 作ったら sudo kubectl expose pod webserver-d698d7bd6-rjht6 --port=80 --target-port=80 --name=webserver # できたのを確認 sudo kubectl get service NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.43.0.1 <none> 443/TCP 9m15s webserver ClusterIP 10.43.69.55 <none> 80/TCP 3s
Ingress
k3sの外から入ってくる部分を作る。外部からのアクセスをServiceに渡す感じ。 これはコマンドではできないっぽい。
Ingressのファイルを作る。
cat <<'EOF' > ingress.yml apiVersion: networking.k8s.io/v1beta1 kind: Ingress metadata: name: webserver-ingress spec: rules: - http: paths: - path: / backend: serviceName: webserver servicePort: 80 EOF
# 定義を読み込ませる sudo kubectl apply -f ingress.yml # できたのを確認 sudo kubectl describe ingress webserver-ingress Name: webserver-ingress Namespace: default Address: 192.168.1.16 Default backend: default-http-backend:80 (<none>) Rules: Host Path Backends ---- ---- -------- * / webserver:80 (10.42.0.8:80)
動作確認
curlでアクセスするとNginxの最初から入っているHTMLが返ってくるはず。
curl 192.168.1.16
Xubuntuをインストールした後にSSDを暗号化したくなった
やること
Xubuntuをインストールして使っていたけど、後からディスク(SSD)全体を暗号化したくなったときにやること。 同じSSDを使って暗号化するため、一度データは全部消す。システムを動かしたまま暗号化はできない。
この手順は、実機でやる前にKVM上のXubuntu 19.10でやった。
暗号化後に必要なものを、暗号化前のシステムでインストールしておく
sudo apt install lvm2 cryptsetup-initramfs
バックアップとパーティション作成
これは、USBからXubuntuを起動して行う。
まずは、バックアップ
sudo mkdir /backup sudo mount -t ext4 /dev/vdb1 /backup sudo mount -t ext4 -o ro /dev/vda2 /mnt sudo apt install dump sudo dump -0 -z -f /backup/root.dump /mnt sudo umount /mnt sudo umount /backup
次にパーティションを作成する。
sudo cgdisk /dev/vda
ここまで終わったら、システムを再起動する。 再起動しないで進めたら、cryptsetupの時にパーティションの容量が何故か少なくなった。 cgdiskの終了時にも警告が出るが、多分、カーネルが古いパーティションテーブルをキャッシュしているからだと思う。
暗号化パーティション作成
再起動が終わったら、パーティションを暗号化する。
sudo cryptsetup luksFormat /dev/vda3
sudo cryptsetup open /dev/vda3 vda3_crypt
sudo cryptsetup status vda3_crypt
暗号化したパーティション状にLVMのボリュームを作る。
sudo pvcreate /dev/mapper/vda3_crypt sudo pvdisplay sudo vgcreate vgxubuntu /dev/mapper/vda3_crypt sudo vgdisplay sudo lvcreate --size 1024m vgxubuntu -n swap sudo lvcreate -l 100%FREE vgxubuntu -n root sudo lvdisplay
作ったら、ext4でフォーマットする。
sudo mkfs -t ext4 -L boot /dev/vda2 sudo mkfs -t ext4 -L root /dev/mapper/vgxubuntu-root
swapも。
sudo mkswap /dev/mapper/vgxubuntu-swap
リストア
バックアップを元に戻す。
sudo mount -t ext4 -o noatime /dev/mapper/vgxubuntu-root /mnt Sudo mkdir /backup sudo mount -t ext4 -o ro /dev/vdb1 /backup cd /mnt sudo mkdir boot sudo mount -t ext4 -o noatime /dev/vda2 /mnt/boot sudo apt install dump sudo restore -v -r -f /backup/root.dump cd sudo umount /backup /mnt/boot /mnt
crypttab, fstab, grub
起動できるように設定する。 マウントしてから設定する。
sudo mount -t ext4 -o noatime /dev/mapper/vgxubuntu-root /mnt sudo mount -t ext4 -o noatime /dev/vda2 /mnt/boot sudo mount -t vfat -o noatime /dev/vda1 /mnt/boot/efi
マウントしたら、crypttab, fstabを書き換える。 crypttabにはvda3をマウントするように設定しておく、 fstabは/に/dev/mapper/vgxubuntu-rootをマウントするようにする。 そのほか、swapなども忘れずに設定する。
最後に、grubとinitramfs。
sudo mount --bind /dev /mnt/dev sudo mount --bind /proc /mnt/proc sudo mount --bind /sys /mnt/sys sudo mkdir /mnt/run/udev sudo mount --bind /run/udev /mnt/run/udev sudo chroot /mnt grub-install --efi-directory=/boot/efi --boot-directory=/boot --target=x86_64-efi --removable --recheck sudo chroot /mnt update-initramfs -k all -u sudo chroot /mnt update-grub
これで終わり。
sudo umount /mnt/dev /mnt/proc /mnt/sys /mnt/run/udev /mnt/boot/efi /mnt/boot /mnt
再起動して、パスワードを入力すると、起動できる。
Spring BootでJSR-352 Batch Applications for the Java Platform
やること
Spring Batchのリファレンスに記載の方法で起動すると、@Serviceなどのコンポーネントを参照してくれない。
JobOperator jobOperator = BatchRuntime.getJobOperator(); long jobExecutionId = jobOperator.start("myJob", new Properties());
batch.xmlに以下のように記載しておくことで、DIできるが、Spring Bootらしくない。
<bean id="myService" class="com.example.batch.MyService" />
なんとかして、Spring Bootらしくバッチを書く。
調査
BatchRuntime.getJobOperatorすると、JsrJobOperatorのデフォルトコンストラクターが実行される。 このコンストラクターの長で、BaseContextHolderが呼ばれ、GenericXmlApplicationContextがjsrBaseContext.xmlを読み込んでいた。 JobOperator#startで、META-INF/batch.xml、META-INF/batch-jobs/*.xmlを読み込んでいる。 このため、XMLに定義したBeanは使える。
解決案
JsrJobOperatorは以下のようなコンストラクターも持っているため、そちらを使うようにする。
public JsrJobOperator(JobExplorer jobExplorer, JobRepository jobRepository, JobParametersConverter jobParametersConverter, PlatformTransactionManager transactionManager)
